Ecosip -

Panel térmico estructural

Ecosip es un panel estructural y térmico formado por dos placas de madera OSB y un núcleo de poliestireno (EPS) de alta densidad de fabricación propia.

Placa de madera OSB

Excelentes propiedades físico-mecánicas
Es un producto particularmente indicado para aplicaciones estructurales en la construcción
Certificación APA (Calidad de cumplimiento de normas estructurales)
Adhesivos de ultima generación, resinas fenólicas en caras y MDI en el centro.
Aditivos naturales contra termitas, hongos y fuego.

POLIESTIRENO EXPANDIDO (EPS)

El poliestireno es uno de los MEJORES aislantes térmicos
FUERTE capaz de soportar las cargas.
Aislante acústico.
Impermeables a la humedad.
No requiere mucha ENERGIA para su fabricación.

Características

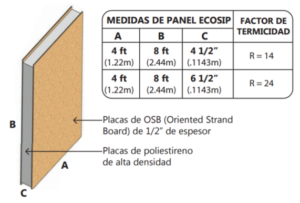

Puede ser fabricado en 4’x8’ hasta 24’ y con un espesor de 4,6,8”
El peso del panel de 6 ½” es de 54 kg. (18 KG /M2)
La capacidad de carga axial para muros terminados es de 11 toneladas por ML hasta su deformación.
La capacidad de carga a la flexión para losas de entrepisos en sus sentido corto es de 300 Kg./m2 para cargas vivas en claros hasta 2.44 ML y en cubiertas hasta 3.66 ML de claro libre.
Los materiales están tratados contra fuego, hongos y contra termitas.

AISLAMIENTO

Todos los materiales oponen RESISTENCIA, en mayor o menor medida al paso de la temperatura a través de ellos. Algunos muy escasa como los metales, otros una resistencia media como es el caso de los materiales de construcción (yesos, ladrillos, morteros, etc).

Por lo tanto aislante térmico es aquel material usado en la construcción y caracterizado por su ALTA RESISTENCIA TERMICA, estableciendo una barrera al paso de la temperatura entre dos espacios.

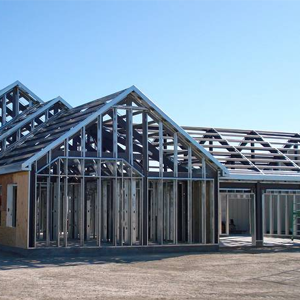

Metales

Escasa resistencia

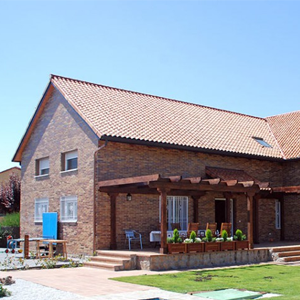

Ladrillo

Media resistencia

Poliestireno expandido

ALTA RESISTENCIA

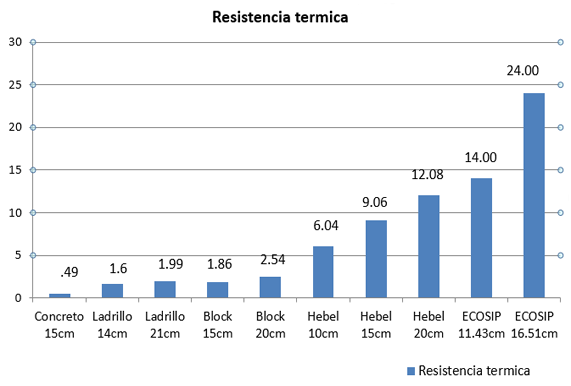

VALOR R

El valor R es una medida de resistencia TÉRMICA utilizada en la industria de la construcción. “R” significa RESISTENCIA al flujo de la temperatura.

Cuanto más alto sea el valor-R, mayor será el poder de AISLAMIENTO del material.

Beneficios

Confort

Alto valor R involucrado

Alto ahorro de energía para climatización
Homogeneidad

Mínimas filtraciones de aire

Máxima conservación de temperaturas interiores
Equipos y ductos para climatización mas pequeños.

Versatilidad

Menor tiempo en la ejecución de la obra
Menor desperdicio (menor escombro) mayor limpieza
Mayor calidad en plomeos y escuadras
Mayor calidad en revestidos, acabados y recubrimientos.
Fácil fijación de muebles, cuadros, cocinas, cortinas, repisas, persianas, etc.
Alta rentabilidad en su ciclo de vida.

Estructural

Menor peso

Cimentación mas sencilla

Proyectos en segunda planta independientes de la primera planta
Fácil solución de instalaciones mecánicas y eléctricas
Menores dimensiones en elementos estructurales
